Lifting tables with high duty cycles

To face a real need in the lifting equipment market, CEFAM S.A. Fabrications ATLAS has designed a new electromechanical lifting table ensuring a maximum safety for the users.

This new equipment offers several advantages :

  • Very low collapsed position
  • High maintenance
  • A very good vertical and horizontal stability through the conjunction of scissors and belts
  • Easy program of lowering and lifting speeds
  • Accurate stops in high and intermediate positions
  • No leak of hydraulic oil
  • Working with less noise
For more information Contact-us !

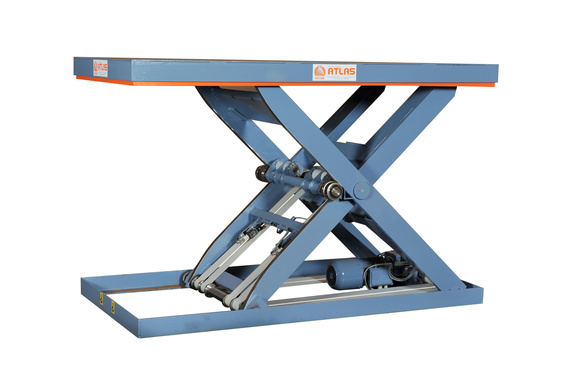

  • Lifting table FX with belts

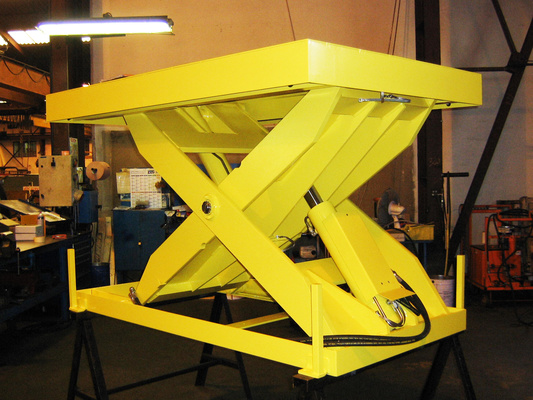

  • Lifting table with alternate ways up cylinders

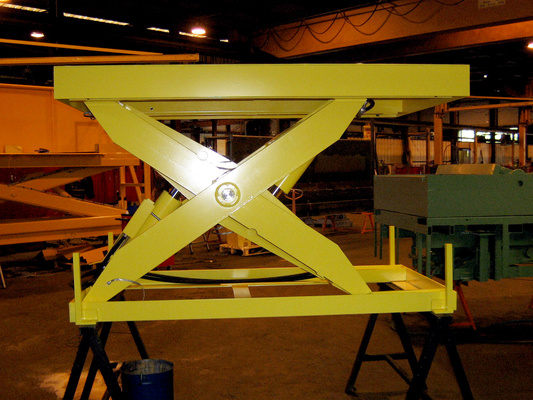

  • Lifting table with alternate ways up cylinders

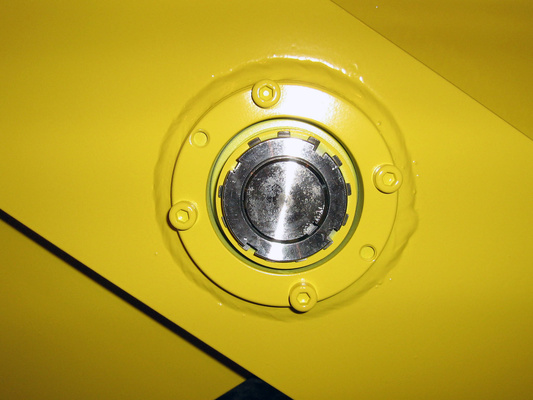

  • View of the axle on bearings
  • For more information Contact-us !

    MAXIMUM SAFETY

    • If one belt breaks, the lifting table stops immediately.
    • The lifting table is supplied with one side protection bellow, unless it is set up in a safety area.
    • Safety legs integrated in the base frame
    • This lifting table meets perfectly the European Machines Directive 2006/24/CE and the EN 1570 standard about lifting tables.

    Technical information:

    Type

    Capacities(daN)

    Mini lenght(mm)maxi (mm)

    Width

    Stroke(mm)

    Collapsed position (mm)

    High position(mm)

    Motor

    Electricity supply

    mini maxi (mm) (mm)

    TC1

    1200

    2000

    800*

    1300

    236

    1536

    1,1 KW (ext)

    400 V TRI - 50 Hz

    TC2

    2000

    2000

    1000*

    1300

    300

    1600

    2 KW

    400 V TRI - 50 Hz

    TC3

    3000

    2500

    1000*

    1300

    400

    1700

    3 KW (ext)

    400 V TRI - 50 Hz

    * = Possibility to place the motor inside the lifting table

    For TC1 et TC2, add 200 mm in the width

    For TC3, add 400 mm in the width
